Senior Project Design Supervision

4. Project Title: "Digitally Controlled RF Power Meter for Cell Phone Coverage Measurements", (Co-Advisor)

    Term: 112 (Spring 2012)

    Students: M. A Sawlan, M. T. Hussain, A. Al-Jughayman and M. Al-Ghamdi.

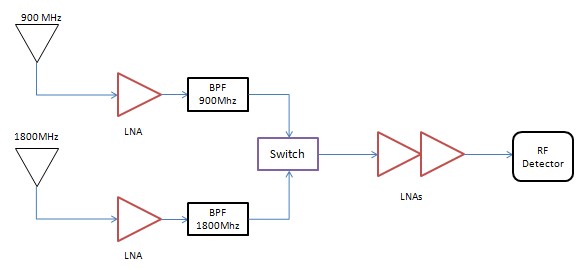

Figure 21: 3-LNA RF Front End Architecture.

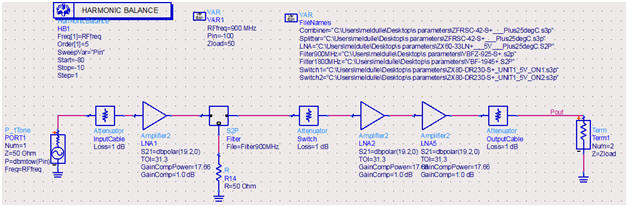

Figure 22: Architecture 3 Harmonic Balance Components Layout in ADS

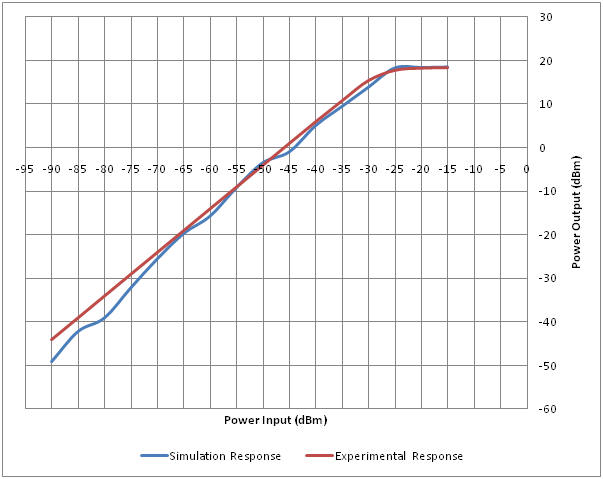

Figure 52: Comparison between Experimental and Simulation Results for 900 MHz

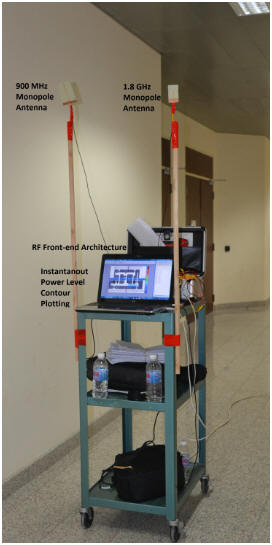

Figure 57: RF Power Meter Complete System

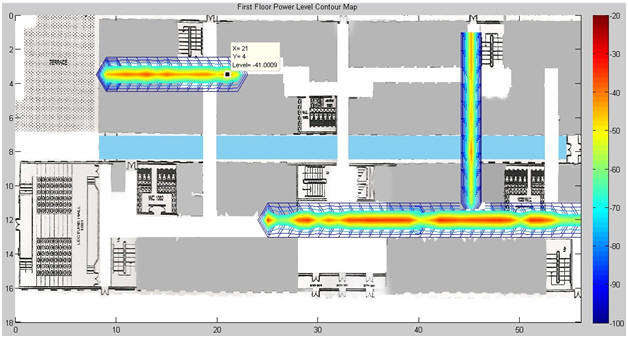

Figure 61: First Floor 900MHz Contour Map
