Senior Project Design Supervision

3. Project Title: "Design and Implementation of a Digitally Controlled RF Power Meter For Wireless Coverage Measurements ", (Co-Advisor)

    Term: 111 (Fall 2011),

    Students: A. A. Al-Mansour, R. Al-Safriah, S. Al-Otaibi and A. Al-Sindi.

    This project was chosen as the only Undergraduate Student Senior Project Design from the Electrical Engineering Department to be

    presented in the Third Saudi Students Conference in Khobar, Saudi Arabia, April 2012.

    THIS PROJECT WON THE 5TH PLACE PRIZE IN THE THIRD SAUDI STUDENT CONFERENCE.

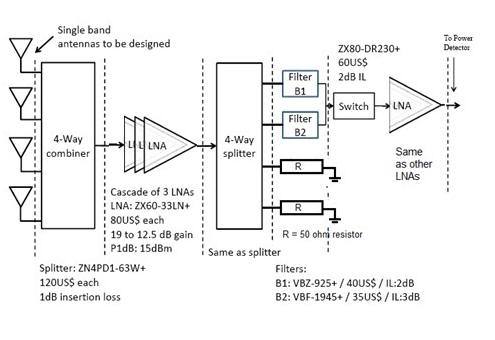

Figure 4.6:  The System Level RF Architecture Adopted in the Implementation.

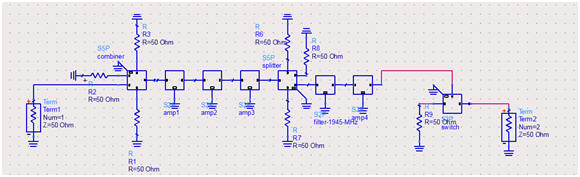

Figure 4.3: ADS Simulation schematic for 1.8 GHz band of operation.

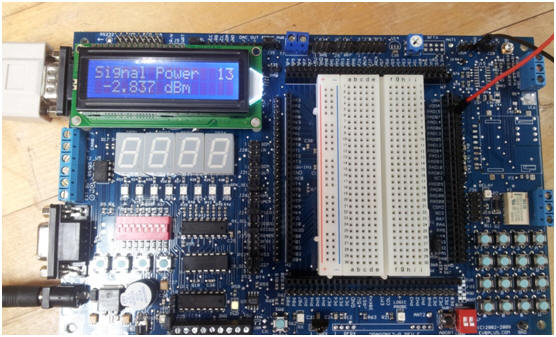

Figure 50: Test the signal power and efficiency of the code
