HOMEWORK SOLUTION



HW #10



CE 353

GEOTECHNICAL ENGINEERING I



(Question no. 8.9, 8.10, 8.17, 8.19 ..Al-Khafaji textbook)






8.9              Undisturbed soil sample D = 50 cm tested in triaxial cell where H = 100 mm. Sheared under additional load Fd = 725 N with vertical deformation d = 18 cm failure plane was inclined at 51 degrees to the horizontal. Cell pressure s3 = 300 kPa.



Question:

Determine Coulomb’s equation for the soil shear strength in terms of total stress.



Solution:

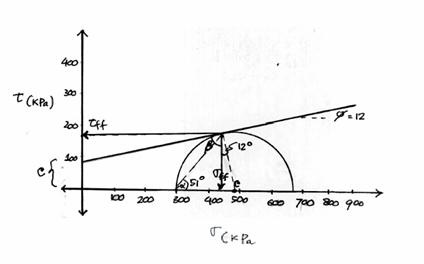

a = 51o                        a = 45o+(f/2)                          f = (51-45)x2 = 12o








So, the equation is        …………..ans







8.10          Box area = 4500 mm2

Normal load = 625 N



Question:

Failure shear stress.



Solution:



……………….use f in problem no. 8.9






8.17



Sample

s3(kN/m2)

s1(kN/m2)

uo(kN/m2)

s3’

s1’

1

196.1

343.2

137.3

38.8

205.9

2

392.3

686.5

275.6

116.7

410.9



Question:



(a)    values c and f for total stresses

(b)   values c’ and f’ for effective stresses

(c)    shear and normal stress on the failure plane in sample 2



Solution:



(a)  fT = 13o           from the graph



c = (c1+c2)/2=(8.416.7)/2=12.6kN/m2





(b)  f’ = 25o           from the graph





c = (c1+c2)/2=(35 +39.1)/2=37kN/m2





(c)































8.19     Depth   = 10 m

            LL        = 65

            PL        = 30

            gsat        = 17.8 kN/m3



            Question:

            Estimate Su (Undrained Shear Strength).



            Solution:



            Su = Cu = Po (0.11 + 0.0037 PI)



            Po = 10 x (gsat-gw) = 10 x (17.8-9.81) = 79.9 kN/m2 = 79.9 kPa



            PI = LL – PL = 65 – 30 = 35



            Su=Cu = 79.9 ( 0.11 + 0.0037 PI )

                        = 79.9 ( 0.11 + 0.0037 x 35 )

                        = 19.1 kN/m2 = 19.1 kPa
