Main Steps for Using STAAD Demo Software


Example :

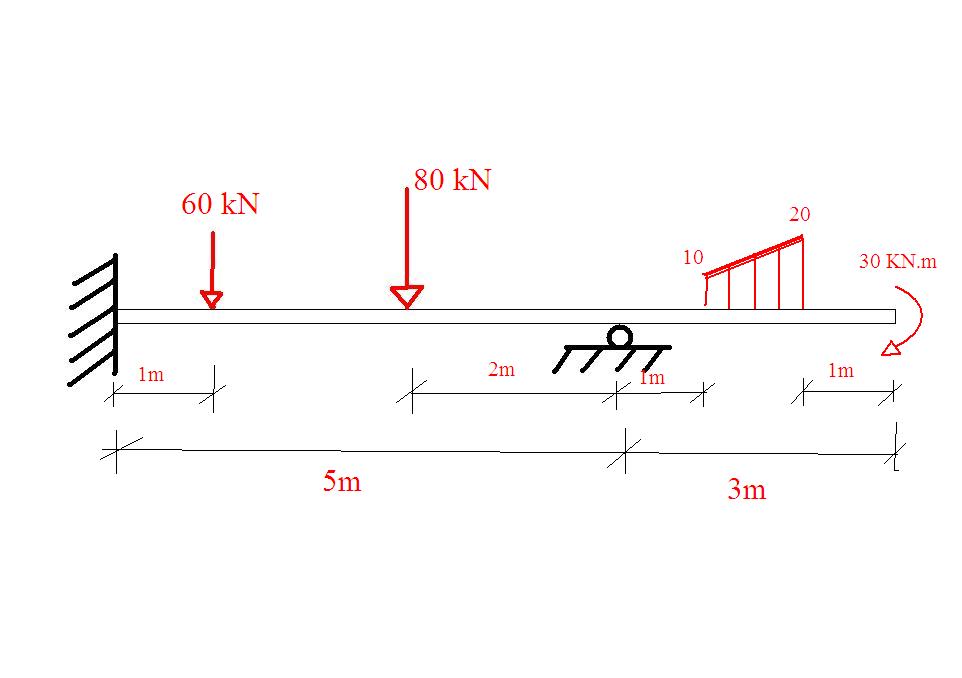

Analyze the given statically Indeterminate beam , i.e. determine all reactions, draw shear and moment diagrams, and find the beam deformations (deflections and rotations)

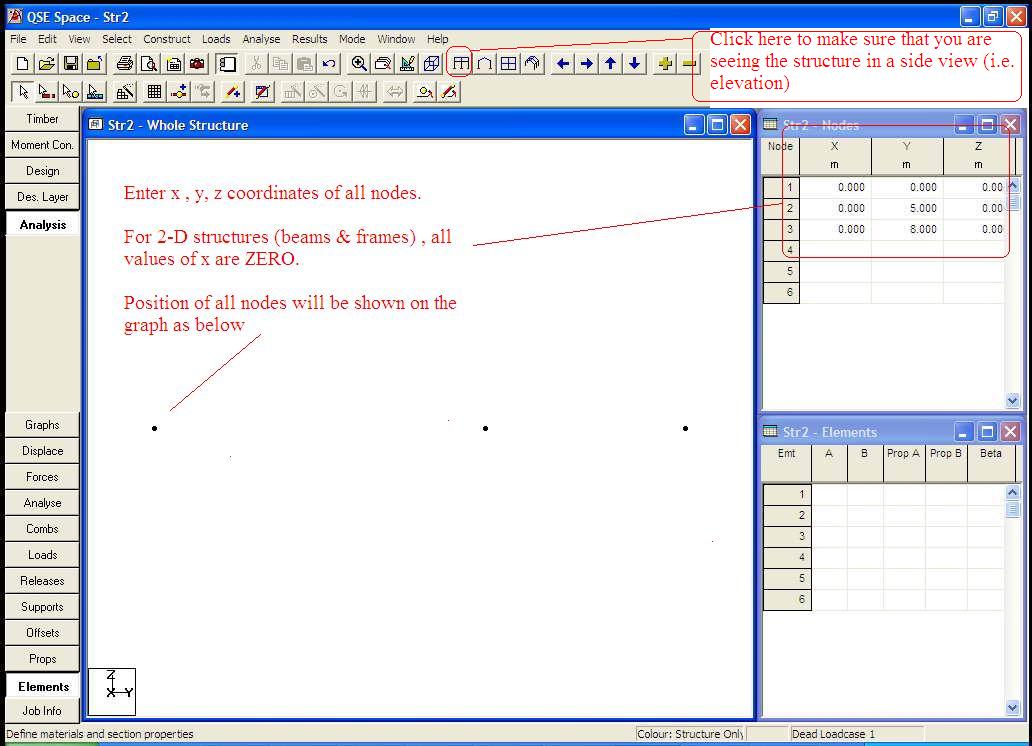

Step 1: Define nodes

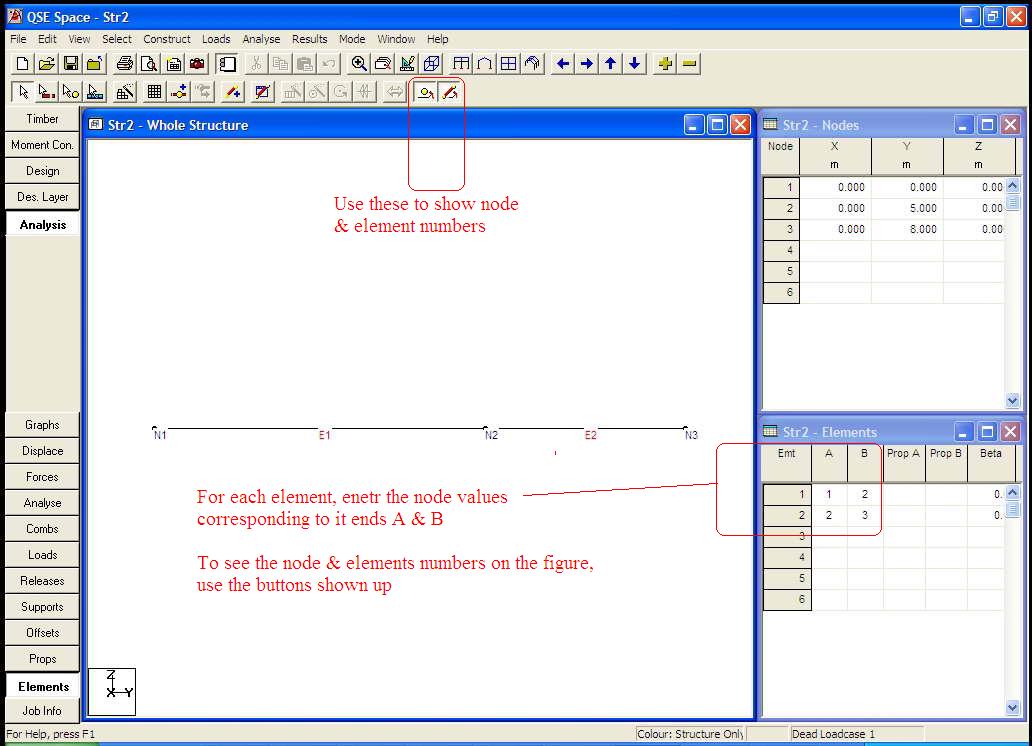

Step 2: Define elements (members)

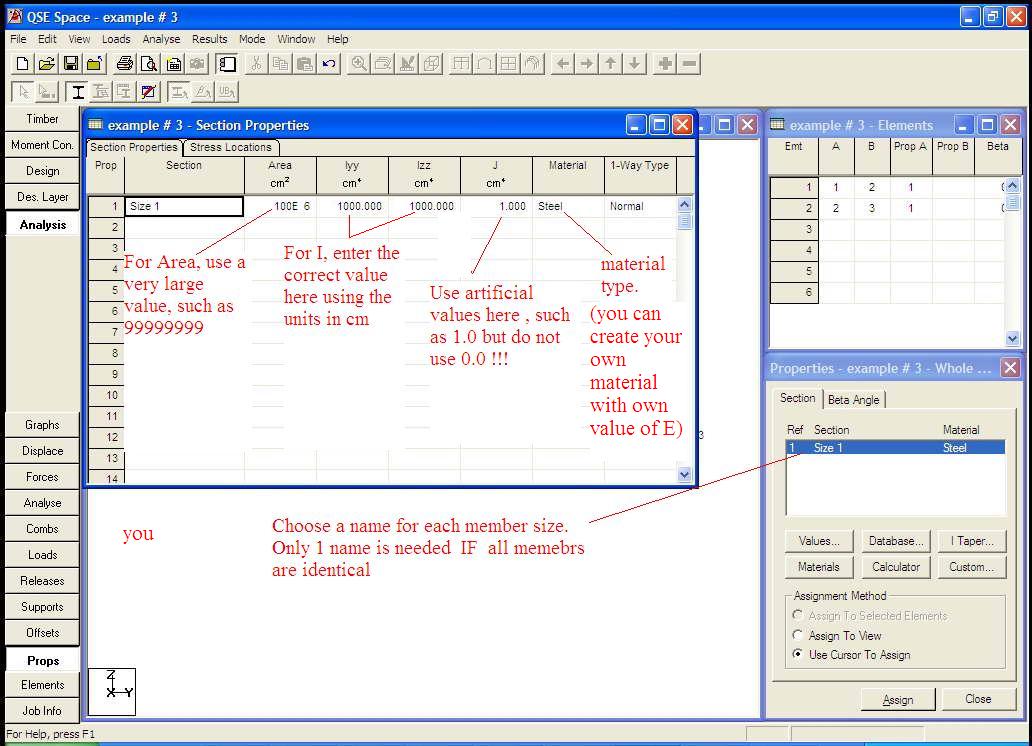

Step 3: Define element properties

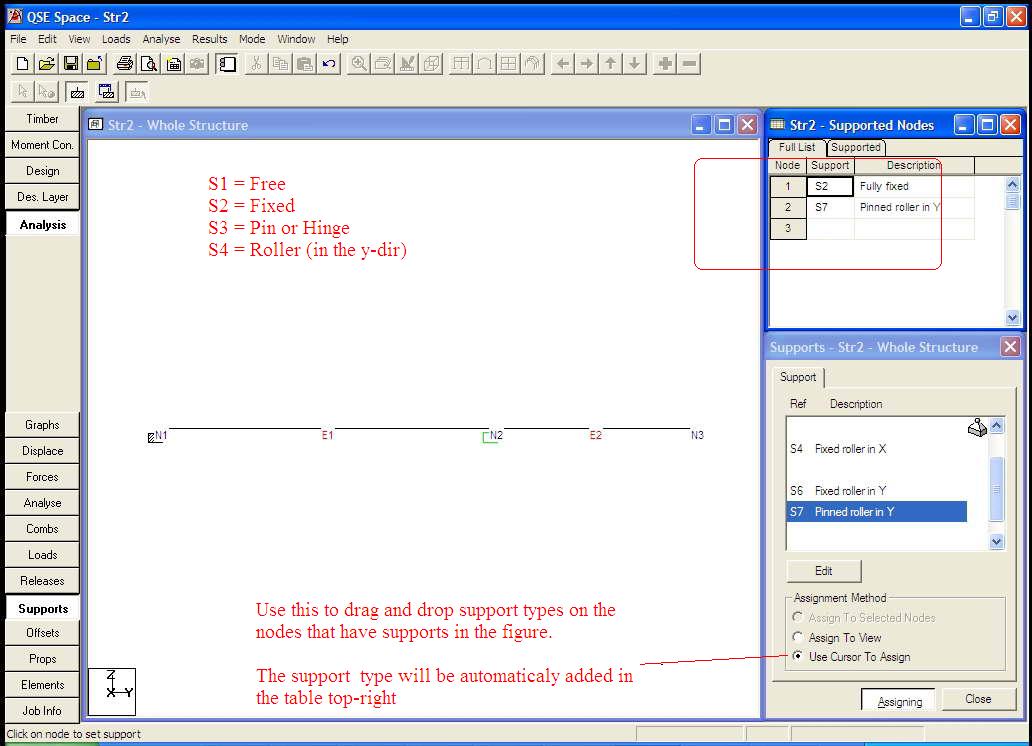

Step 4: Define supports

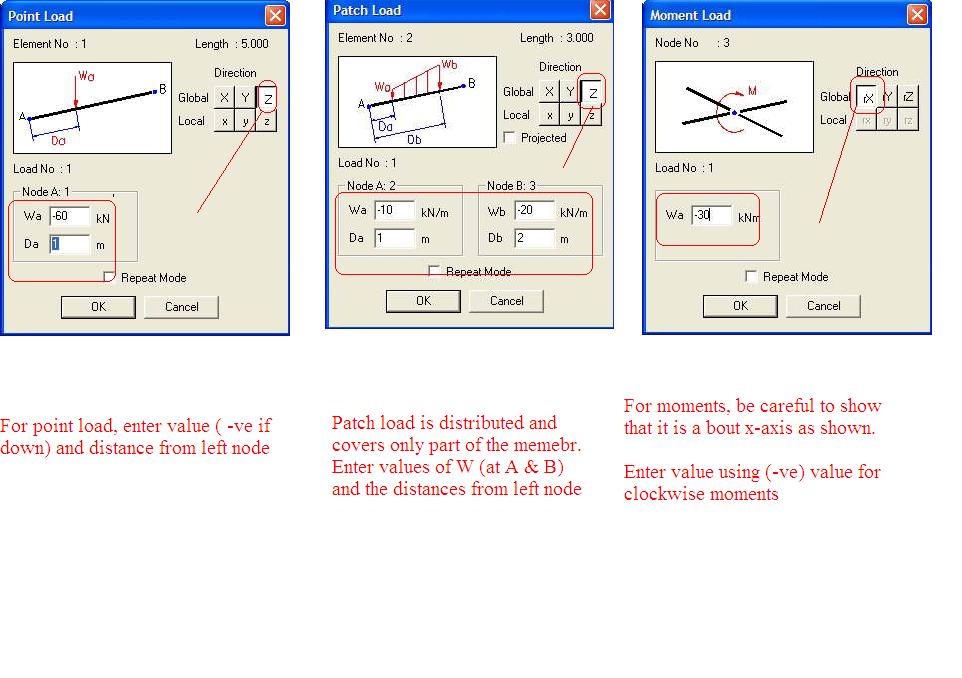

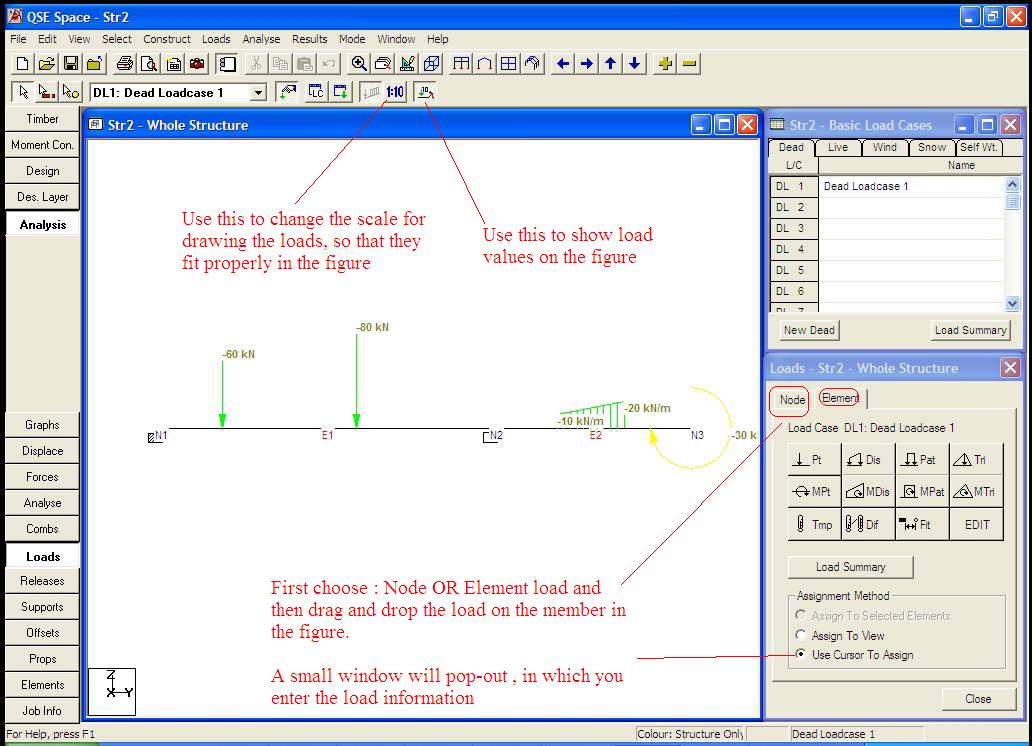

Step 5: Define loads

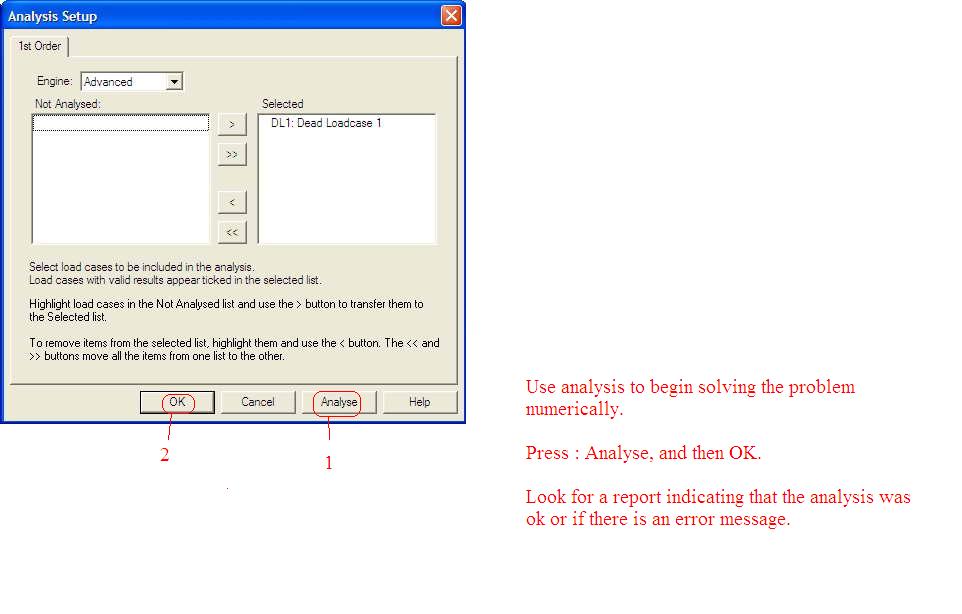

Step 6: Start the analysis

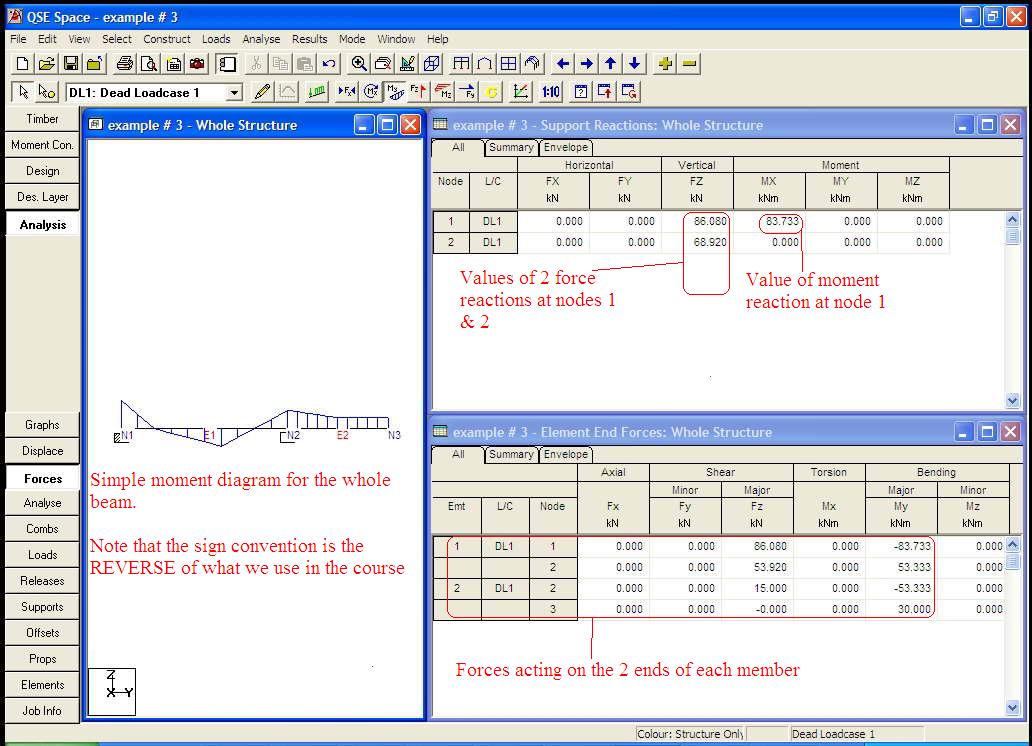

Step 7: Results (Forces page)

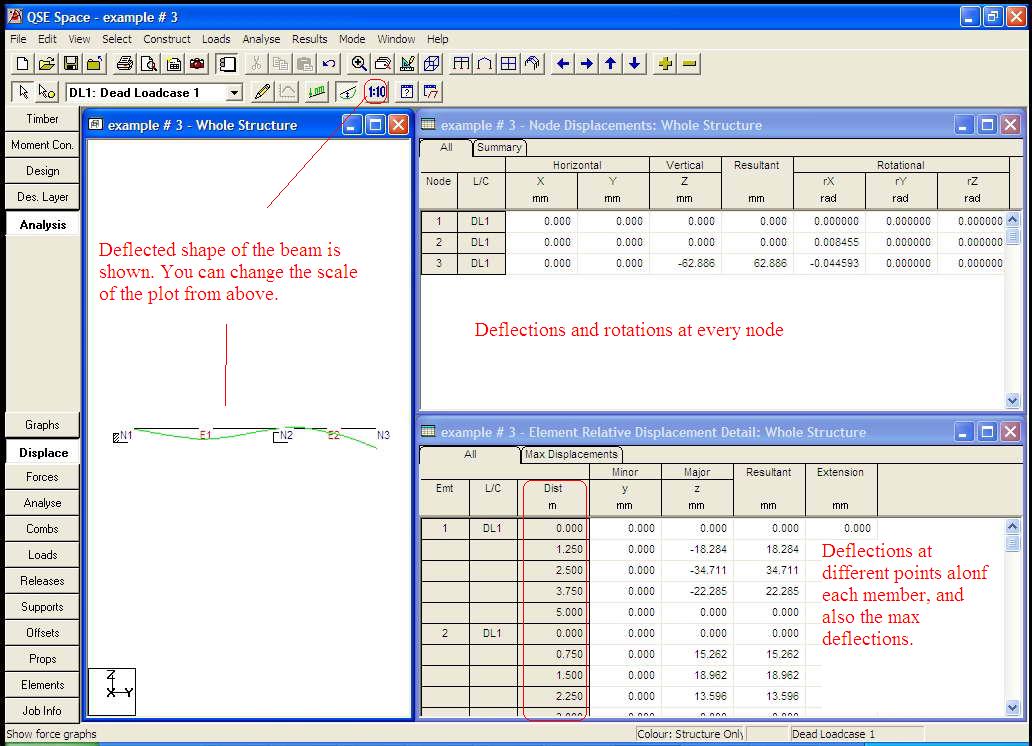

Step 8: Results (Displacement page)

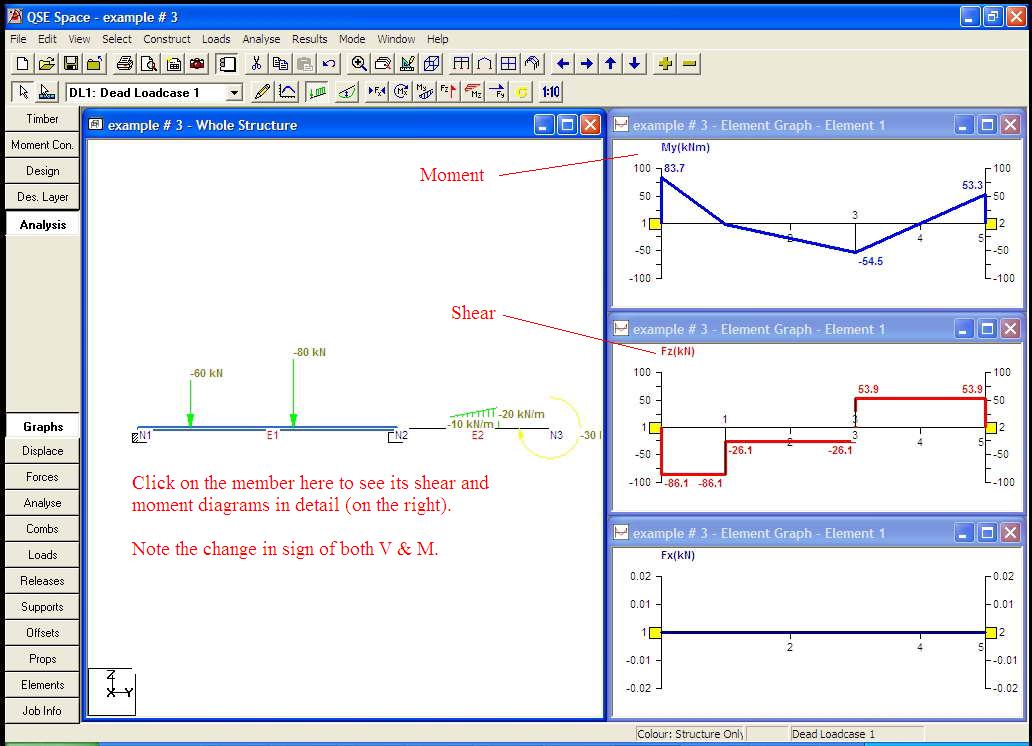

Step 9: Results (Graphs  page)
